High Pivot Point

Every rear suspension system has a pivot point. The suspension design on the Highlander uses a high single pivot point which results in a rearward axle path allowing the rear wheel to move with the impact, while the bike continues to maintain forward momentum. It is a sensation that you will notice from your first ride and the result is that the Highlander has an ability to negotiate chunky terrain with a speed and confidence that plenty of bikes packing much more rear wheel travel can’t match. The careful idler placement, mean the suspension performance on the Highlander is the best of all possible worlds. This is because the idler location controls anti-squat, creating a deliberate +100% anti-squat curve which eliminates pedal induced suspension bob.

High single pivot point 讓後軸遇上衝擊時向後移動，使單車能夠繼續保持向前的動力。面對崎嶇的地形可以更快及更流暢。

Linkage

Our linkage is designed to offer a progressive leverage curve intended to offer support for harder and more aggressive riders. The progressive linkage means that high volume air shocks and coil shocks are compatible. The use of an idler means that the leverage ratio of the Highlander is tuned independently of anti-squat and pedal kickback (of which there is a negligible amount).

Linkage 根據 progressive leverage curve 設計。為更強及更進取的車友提供支持。

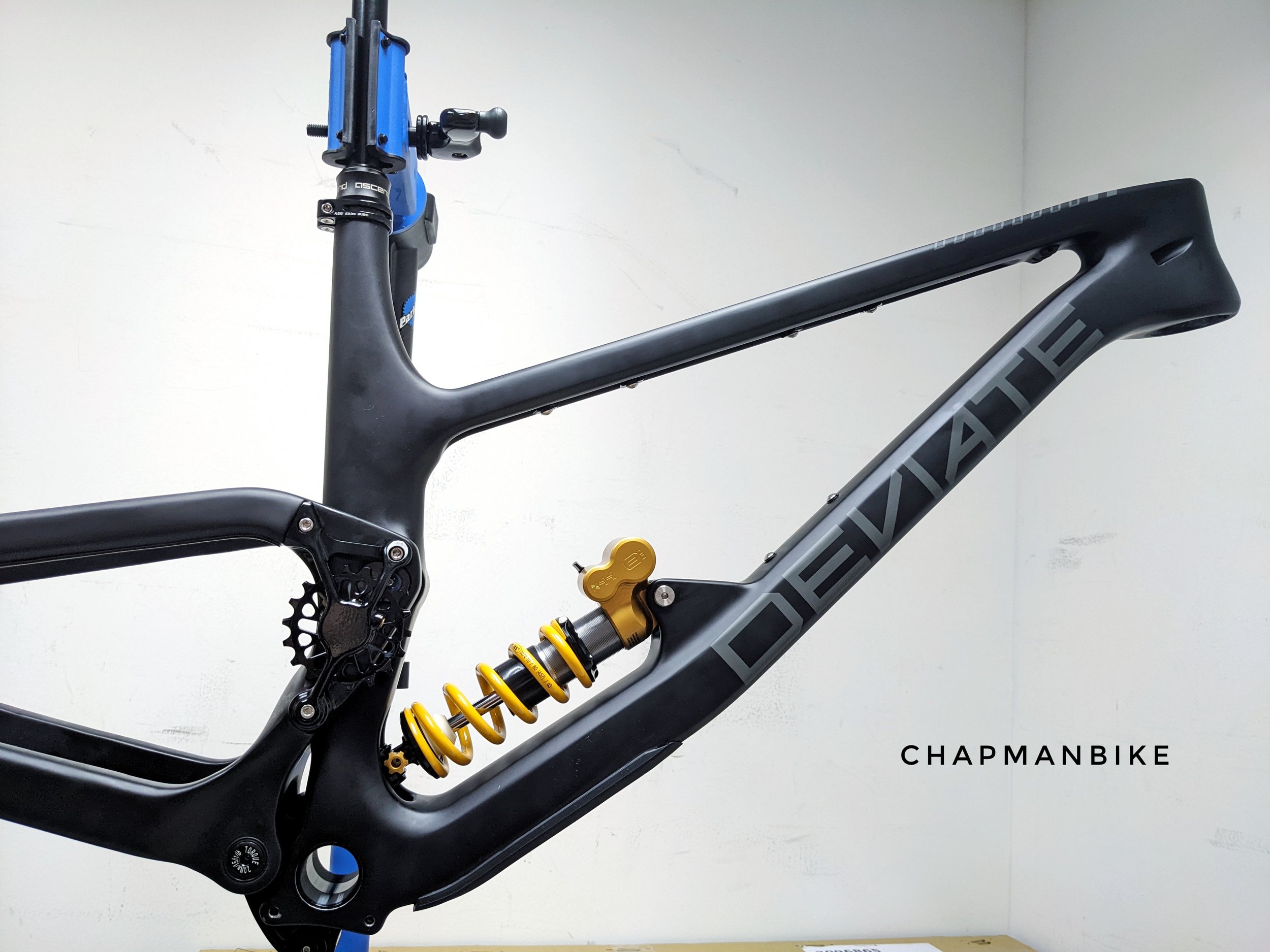

Idler

In order to control pedal kickback and anti-squat on a high pivot point bike we need to use an idler. Unlike non-idler equipped designs we can virtually eliminate pedal kickback while creating a balanced anti-squat curve which is controlled by the idler position. In the real world this means the bike pedals incredibly well, without bobbing, while the suspension remains active providing traction. The lack of pedal kickback is instantly noticeable with the Highlander showing an uncanny ability to pedal smoothly through rough terrain.

Idler 的設置有效防止踩腳踏時的回彈，令你每一步都順暢。

Highlander 150 Component Standards

Rear Wheel: 29”, Boost: 148mm * 12mm

Fork Compatibility: 29” 160mm with 44/42mm offset

Bottom Bracket: 73mm BSA Threaded

Headset: ZS44/ZS56

Cranks: Minimum Q-factor of 168mm

Chainline: 52mm

Chain length: 126 links (widely available, no need to join chains)

Max Chainring Size: 36t

Shock Size: Metric 210*55mm

Shock Hardware: Front: 30*8mm | Rear: bushing

Brake Mount: Post Mount 180mm

Seatpost Compatibility: Internal dropper routing with internal cable routing. 31.6”, Max Insertion Depth: Medium:- 300mm, Large:- 330mm (that's a 200mm Reverb at full insertion even on the M)

Seat Collar: 34.9mm

Color: Black | Sky Blue

Claymore Component Standards

Rear Wheel: 29”, Boost: 148mm * 12mm

Fork Compatibility: 29” 170 or 180mm with 44/42mm offset

Bottom Bracket: 73mm BSA Threaded

Headset: ZS44/28.6 upper and a ZS56/40 lower headset cup

Cranks: Minimum Q-factor of 168mm

Chainline: 52mm

Chain length: 126 links (widely available, no need to join chains)

Max Chainring Size: 36t

Shock Size: Metric 230*60mm

Shock Hardware: Front: 40*8mm | Rear: Eyelet bushing

Brake Mount: Post Mount 180mm

Seatpost Compatibility: Internal dropper routing with internal cable routing. 34.9”

Seat Collar: 38.5mm

Color: Red | Green
